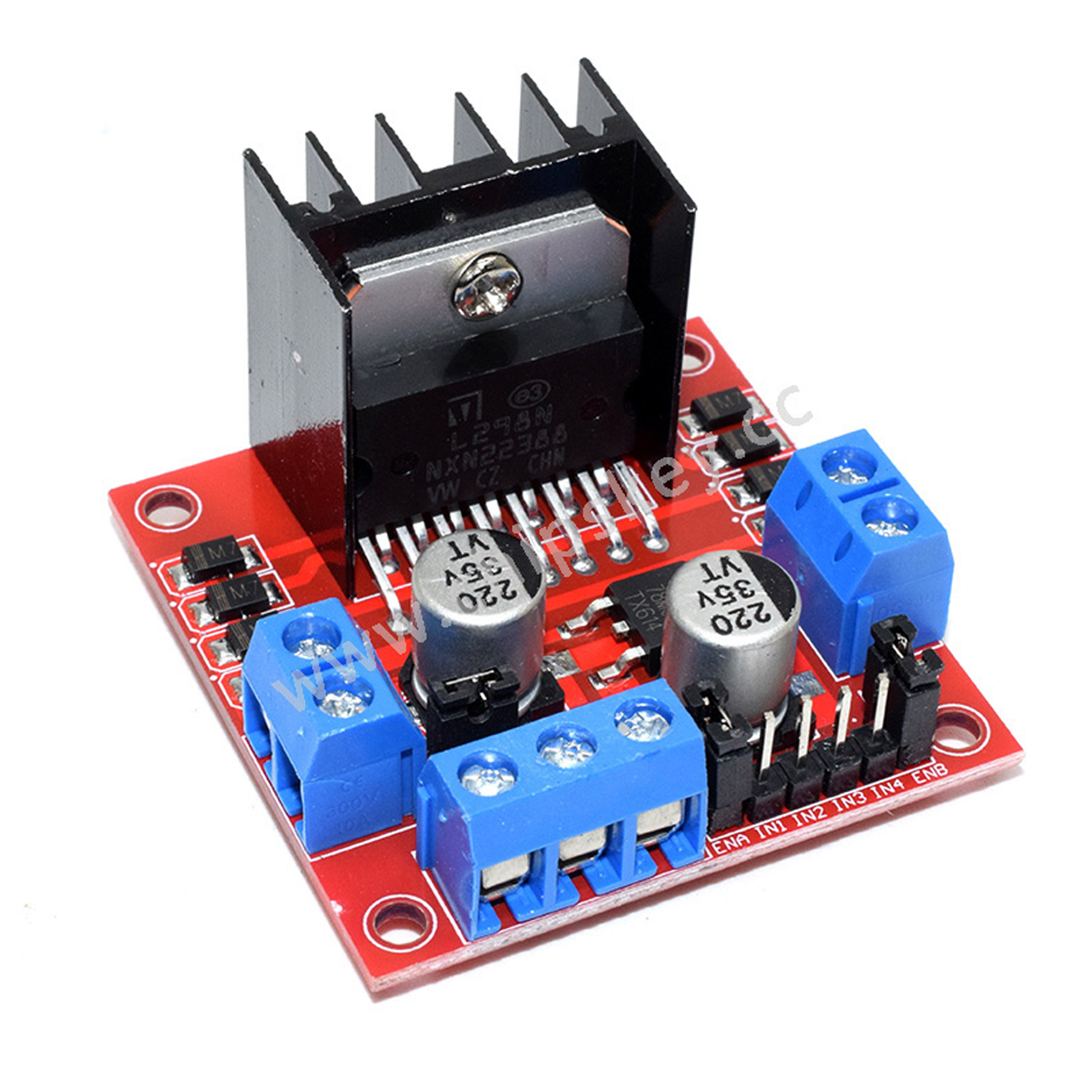

4 Pack L298N Dual H‑Bridge Motor Driver

2‑Channel DC & Stepper Motor Controller

High‑power dual H‑bridge motor driver module based on the L298N chip, ideal for controlling two DC motors or a stepper motor with independent speed and direction. Perfect for robots, rovers, and automation projects that need reliable motor control from a microcontroller.

L298N Dual H‑Bridge Motor Driver Compatibility

Works with Arduino, ESP32, ESP8266, Raspberry Pi, STM32, and most 5V‑logic microcontroller platforms using standard PWM and direction pins.

Key Features

Dual full H‑bridge driver for two DC motors or one bipolar stepper motor with independent direction and speed control.

Wide motor supply range, typically 5–35V, suitable for many hobby and light‑industrial motors.

Up to 2A continuous drive current per channel (with proper heatsinking and ventilation), with onboard heatsink to help manage temperature.

Onboard 5V regulator (78M05) can provide logic power when motor supply is in the supported range (commonly 7–12V).

Screw terminals for easy motor and power wiring, plus pin headers for logic‑level control signals.

Direction, enable, and PWM control pins for fine‑grained control of speed and rotation from your code.

Technical Specs

Driver IC: L298N dual full‑bridge driver.

Logic voltage: typically 5V.

Motor supply (driver) voltage: typically 5–35V (check your module’s silkscreen and datasheet).

Max drive current: up to 2A per channel (with adequate cooling), 25W maximum module power rating.

Outputs: 2 channels for DC motors (OUT1–OUT4) or single stepper motor phases.

Control pins: IN1–IN4 for direction, ENA/ENB for PWM speed control.

Typical board size: around 43 × 43 × 27 mm (varies slightly by manufacturer).!

Ideal Uses

Differential‑drive robots and rovers using two DC gear motors.

Stepper‑driven mechanisms like sliders, camera pans, and small CNC axes.

Smart‑home and automation projects that need to move valves, gates, or actuators.

Educational projects demonstrating H‑bridge motor control, PWM speed control, and bidirectional drive.!

What’s Included

4 × L298N Dual H‑Bridge Motor Driver Module.

Safety Note

The L298N can get hot at higher currents; ensure good ventilation and do not exceed the recommended voltage and current ratings. Always disconnect power before rewiring motors, and use appropriate fuses or protection when driving larger loads.
