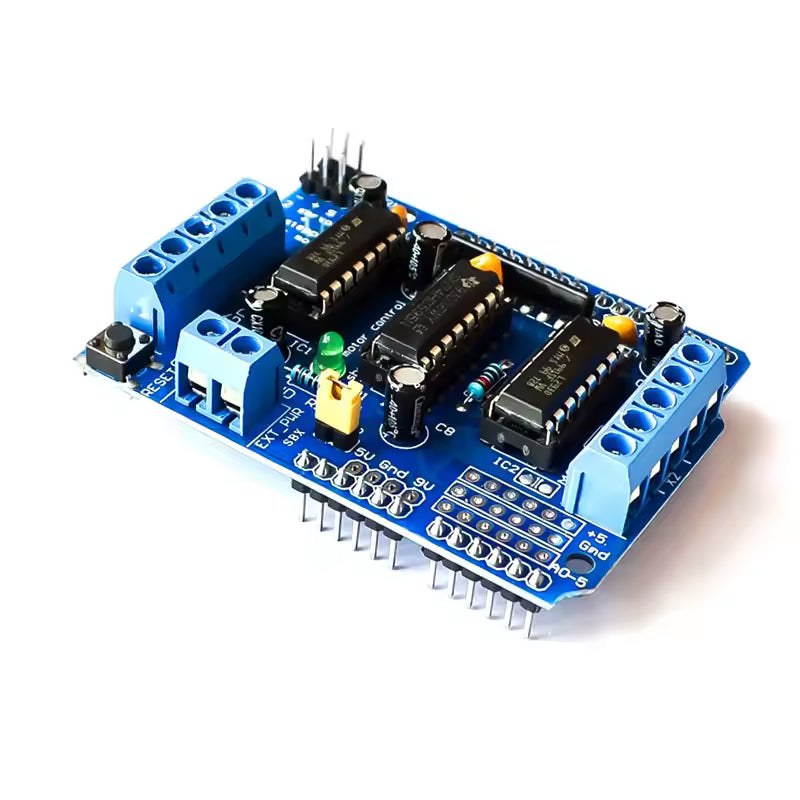

2 Pack L293D Motor Control Shield – Motor Drive Expansion Board

Product Description

The L293D Motor Control Shield is a plug‑on expansion board that makes it easy to add DC motor and small stepper motor control to your projects without complex wiring. Built around the classic L293D dual H‑bridge driver ICs, it allows you to drive up to four DC motors (or two DC motors plus one stepper, depending on configuration) with direction and speed control via PWM.

The shield routes control signals to convenient headers and screw terminals, so you can quickly connect motors, external power, and your microcontroller with minimal soldering. It’s well‑suited for robotics, small vehicles, conveyor prototypes, and general motion‑control projects.

Ideal Uses

• Small robots and rovers using 2–4 DC motors for differential drive or omni‑drive.
• Simple CNC, conveyor, or mechanism prototypes where you need reversible DC motor control.
• Educational projects demonstrating H‑bridge motor control, PWM speed control, and direction changes.
• DIY fans, pumps, and actuator projects that require switching and speed control of low‑voltage DC motors.

Compatibility

• Designed primarily for Arduino‑form‑factor boards (Uno‑style) using a shield footprint.
• Can be used with ESP32 or other MCUs via jumper wires or adapter boards, mapping the shield’s input pins to your chosen GPIOs.
• Supports low‑voltage DC motors and small stepper motors within the L293D’s current and voltage limits.
• Compatible with typical motor control libraries and example sketches used for L293D‑based shields.

Key Features

• Based on L293D dual H‑bridge drivers, providing bidirectional control of up to four DC motors (or combinations of DC and small steppers).
• PWM speed control and direction control via standard digital and PWM pins.
• Screw terminals or pin headers for easy motor and external power connections.
• Often includes flyback diodes and basic protection integrated in the L293D package, simplifying motor wiring.
• Stackable shield design that can sit directly on Arduino‑style boards, reducing wiring clutter.

Technical Specs (Typical)

• Exact values depend on the specific shield revision and manufacturer:
• Driver IC: L293D dual H‑bridge.
• Motor Supply Voltage (VMOT): typically up to around 12 V (check your shield’s rating).
• Logic Voltage: usually      5V for Arduino‑style boards; some shields can be adapted for 3.3V logic with level‑safe inputs.
• Continuous Output Current: typically up to around 600 mA per channel (per motor), with short peaks higher; ensure motors are within these limits.
• Number of Channels: up to 4 DC motor channels (2 per L293D) or combinations for stepper motors.

What’s Included

• 1 × L293D Motor Control Shield / Motor Drive Expansion Board

(Some variants may also include stackable headers, screw terminals, or jumpers, depending on supplier and kit configuration.)

Safety Note

• Always ensure your motor supply voltage and current are within the L293D and shield ratings; overloading can overheat or damage the driver ICs.
• Use an appropriate external power supply for motors—do not power larger motors from the microcontroller’s USB or on‑board regulator.
• Double‑check polarity and wiring for motor supply, motors, and control pins before powering the system.
• For inductive loads, remember that while the L293D includes internal diodes, good layout and adequate decoupling capacitors near the motor supply are still recommended to reduce noise and voltage spikes.
